Yes. Engineered timber is the safest timber floor over underfloor heating, and it works with both hydronic and electric systems when the floor surface stays at or below 27°C (or the lower limit your manufacturer states), the slab is dry, and the heating is brought up gradually. Solid hardwood floorboards can be heated in some set-ups, but they move more and many manufacturers exclude them.
For homeowners enduring the unpredictable chill of a Melbourne winter, combining the organic beauty of real wood with timber flooring underfloor heating is the ultimate home upgrade. However, executing this pairing requires strict adherence to specific technical tolerances, correct installation methods, and a precise understanding of material density. The following comprehensive breakdown and quick-reference guide will help you select the ideal materials to ensure your premium flooring remains flawless and stable for decades to come.
| Factor | Specification | Why it matters | |
|---|---|---|---|
| Timber type | Engineered timber only (multi-layer cross-laminated core) | Cross-laminated layers cancel expansion forces; solid planks cup and split | |
| Optimal thickness | 14–15 mm total (4 mm wear layer + 10–11 mm plywood core) | Keeps R-value under 0.15 m²K/W for efficient heat transfer | |
| Species choice | Oak, Blackbutt, or Spotted Gum engineered profiles | Dense grain structure withstands radiant heat cycles without deforming | |
| Installation method | Full glue-down with heat-rated polyurethane adhesive | Eliminates air gaps that block conduction; floating floors underperform | |
| Max subfloor temp |
Keep the floor surface at or below 27°C, or lower if the manufacturer states it, measured by a floor sensor, not the room thermostat. |
Exceeding this dries fibres too fast, breaking down internal adhesive | |
| Moisture check | Concrete pin meter + RH hygrometer sleeve before installation | Hidden slab moisture causes cupping once heating activates | |
| Heat commissioning | Wait 48–72 hrs after install; raise temp 1–2°C per day only | Gradual warm-up prevents thermal shock across glue joints and board edges | |
| Solid hardwood | Not recommended over radiant systems | Hygroscopic nature causes chronic gapping, cupping, and splitting |
Can You Install Timber Flooring Over Underfloor Heating?
To overcome these natural physical responses, structural engineers came up with engineered timber. Engineered timbers are made from a true hardwood veneer on the exterior (the wear layer) laminated (pressure bonded) to several cross-laminated plywood or Hevea core layers. The forces acting within each underlying layer are offsetting, as the grain of each is perpendicular to the other. As the heating system turns on and off in the same proportion, the boards expand and contract evenly, resulting in engineered timber over underfloor heating being the safest and most stable specification on the modern market.
If you’re using a hydronic system (water pipes in a concrete slab) or an electric matting system, the heat should be spread slowly through the subfloor. Wood is a natural insulator and the profile density, species choice and moisture monitoring of the subfloor need to be carefully managed to prevent trapping of heat or extreme temperature changes to the organic surface layer.
Key Benefits of Timber Floors with Underfloor Heating
Hardwood floors with radiant heating make for a high thermal comfort level in a building and help to create less ambient dust than a traditional ducted heating system. When using a forced-air system for traditional heating, the allergens, fine particles and pet dander are spread around living areas and there are unequal hot spots around ceiling corners. The difference is that radiant underfloor systems use gentle infrared waves that ascend evenly from the floor surface to heat objects and body, and do not aim to warm the entire volume of air.
Radiant heat holds its heat longer than convective heat from an energy efficiency perspective. This floor combined with high density engineered boards becomes a thermal mass radiator. It is able to absorb heat gradually and slowly release the heat throughout the livable spaces, making your home warm long after the main thermostat has turned off.
Besides, there’s no real comparison to walking on warm wood without shoes, it’s a psychological and physical sensation that can’t be beaten. It dispenses with the cold, hard impact of winter floors without the additional bulk of ducted vents or radiators and can be used to provide a clean, open architectural style without the inconvenience of a large heating unit in the home. It also helps when selling your home later, as your investment will become a high-value home with low emission and low allergen.
According to the Australasian Timber Flooring Association (ATFA), timber flooring can be installed over underfloor heating. The selected flooring must be suitable for the heating system, and the manufacturer’s installation instructions should be followed, particularly regarding operating temperature limits and ongoing care, to help minimise heat-related movement and support long-term floor performance.
Hydronic vs electric underfloor heating under timber
Both systems work under timber if the product is rated for it. Hydronic systems circulate warm water through pipes and suit larger areas and new builds. Electric systems use mats or cables and suit single rooms and renovations where floor height is tight. Not every electric cable system is suitable under timber, so ask the heating supplier to confirm in writing.
| Hydronic (water) | Electric (mats or cables) | |
|---|---|---|
| Best for | Whole-home or large areas, new builds | Single rooms, renovations, low build-up |
| Where it sits | Pipes in the slab or screed, or under the floor on battens | Mat or cable under the floor or in a thin layer below it |
| Control | Flow temperature plus a floor sensor | Floor sensor and thermostat |
| Timber note | Low, steady heat suits timber; commission before the floor is laid | Confirm the product is rated for timber; sensor placement matters |

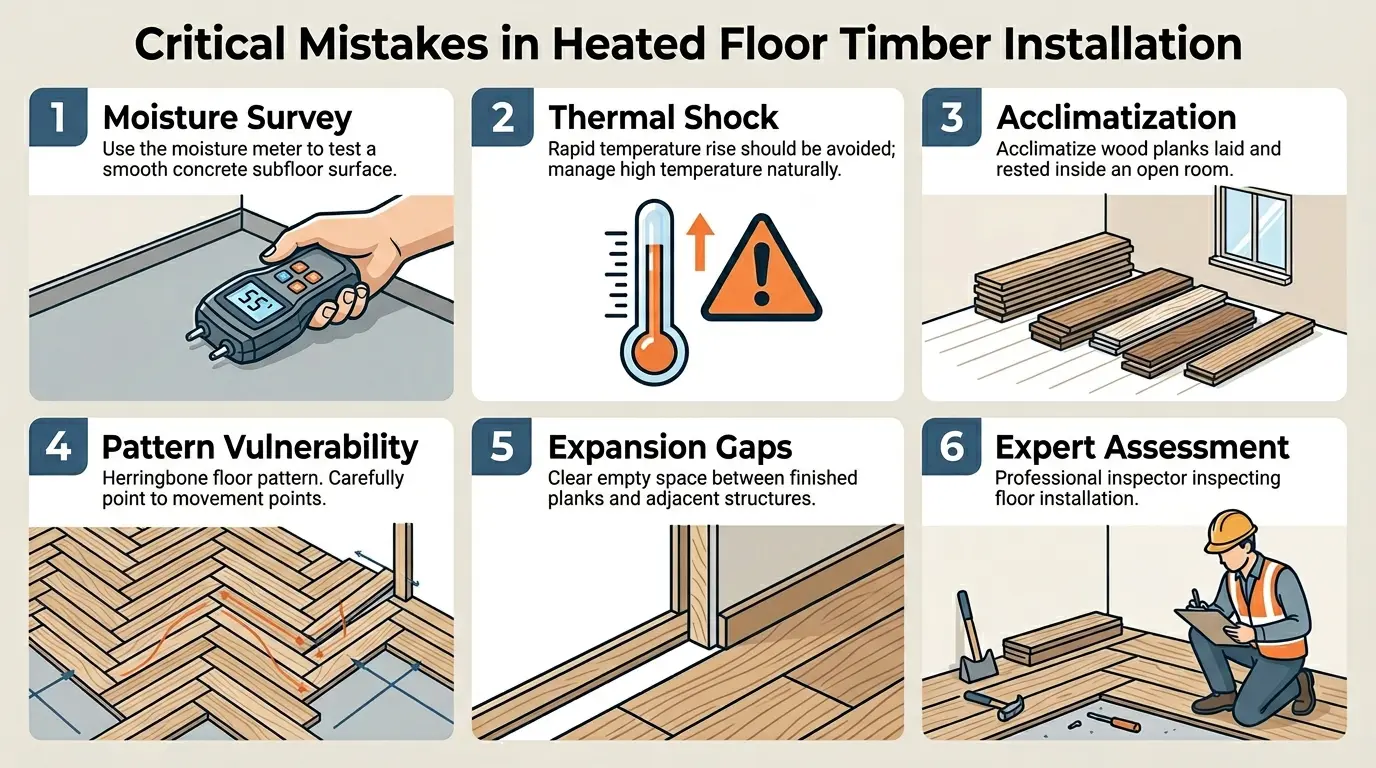

Critical Mistakes to Avoid During Heated Floor Timber Installation
Most failures with timber floor heating systems relate to mistakes made in the installation process rather than with the timber floor or the heating system itself. One of the worst things a concrete flooring installer can do is to simply install the timber without a detailed moisture survey of the concrete subfloor. If there is moisture present but not showing on the surface, then when the underfloor heating is activated, the moisture will rise to the surface, causing intense water vapour to rise into the bottom of the timber boards and cupping will result.
Another common mistake is to turn the heating on too early or to set the initial setting too high. New timber floor should acclimatise to the atmosphere in the room before thermal shifts occur. Where complex or custom patterns are being used, for example, a traditional herringbone or chevron pattern of Parquetry Flooring Melbourne profiles, it’s even more important to ensure that there will be no thermal shock as joints in these patterns are very susceptible to rapid expansion.
Furthermore, if expansion gaps around the perimeter are not properly sized, it will destroy an otherwise flawless floor. Timber should be allowed to breathe on skirting lines and doorways. With these clearances blocked, the growing floor will be forced against walls, which will cause the planks in the middle to buckle upward. In regional or leafy suburban constructions, it is best to work with an experienced team dedicated to Timber Flooring Ringwood, as this ensures that relative humidity differences across the region and particular subfloor conditions are assessed prior to the first plank being glued to the floor.
Underfloor Heating Under Existing Timber Floorboards
The answer depends on which situation you are in.
- New engineered timber over a heated slab. The standard, lowest-risk case.
- Heating added to a suspended timber floor. Elements can be fitted from below between the joists, with insulation beneath, or from above under a new floor. The old boards then act as the subfloor, not the finished surface.
- Heating under existing solid floorboards you want to keep as the finished floor. Possible only with a low-temperature system, a floor sensor and tolerance for seasonal gaps. Solid boards dry unevenly under heat, so expect more movement than engineered timber. Have the species, board width and subfloor assessed before committing.
Starting and restarting the system
Before the floor is installed, the heating should be installed, tested and run up to its working temperature, and the slab confirmed dry. After installation, follow the floor and adhesive manufacturer’s schedule, which is normally a gradual increase of a few degrees a day. Bring the system up gradually again at the start of each winter instead of switching straight to full heat. Rugs and furniture with no airflow underneath trap heat and can push the floor above its limit.
Melbourne winter humidity
Running heating all winter dries indoor air. Timber responds with small seasonal gaps between boards. Keep indoor humidity within the manufacturer’s range and expect gaps to close again in the humid months. Boss installs the floor; supply of the heating system stays with your heating contractor, so agree who commissions the system before the floor goes down.
Choosing the Best Timber Flooring for Underfloor Heating
When choosing the best timber floor for underfloor heating, there are a number of important physical considerations that need to be taken into account, namely total thickness, the density of the timber species and the overall thermal resistance rating (R-value). The R-value of your entire flooring assembly should not be more than 0.15 $m^2K/W$ to assure that heat is transferred into the room as quickly as possible. Timber that is too thick (over 18mm) or a combination of an acoustic underlay that is too thick will create a barrier to insulation, and make your heating system work constantly at full load, which increases energy costs.
The superior cell structure and grain density of Oak makes it the world’s leading radiant underfloor heating standard. Premium engineered profiles of dense Australian species such as Blackbutt or Spotted Gum can also look incredible, when they are sourced as premium options.
Ideal Timber System Thickness Profile:
┌──────────────────────────────────────────────┐ ↑
│ 4mm Hardwood Wear Layer (Oak / Blackbutt) │ │ 14mm to 15mm
├──────────────────────────────────────────────┤ │ Optimal Thickness
│ 10mm-11mm Cross-Laminated Plywood Core │ │ for Heat Transfer
└──────────────────────────────────────────────┘ ↓
The standard installation method used is full elastic polyurethane glue-down. The micro gaps between the subfloor and timber created by floating floors, with foam underlays, result in a poor conduction of heat due to the presence of air. It uses high performance, heat-rated polymers to securely attach the wood piece by piece directly to the subfloor so that it provides immediate, uninterrupted thermal conduction.
Professional Installation vs DIY: When to Hire an Expert
But installing one over a radiant system is a serious financial gamble, because moisture mapping and adhesive specification errors can cause thousands of dollars of top dollar timber to be ruined. Professional installers use special commercial tools such as concrete pin meters, and relative humidity hygrometer sleeves to analyze deep-slab conditions for a few days. They also have the expertise to determine accurate tolerances for expansion in relation to local environmental factors.
When you are doing your home footprint design, using certified trades will make sure that your heating system and finish flooring are perfectly synced. The local professional timber specialists who specialize in high-end timber floors know how to correctly schedule a digital thermostat for protecting the structure from overheating. They look after the important commissioning phase, ensuring that the subfloor heating is incrementally raised by only 1°C to 2°C per day, which gradually warms the wood and guarantees a flawless, flat and noise-free floor the lifetime of your property.
FAQs
What is the best timber flooring for underfloor heating?
The absolute best option is premium engineered timber with an overall thickness between 12mm and 15mm. Oak or stable native Australian species configured with a multi-layer cross-laminated plywood core offer the highest dimensional stability, minimizing the risk of gaps or warping.
Can you put solid Timber floors with underfloor heating?
It is highly discouraged. Solid hardwood flooring responds significantly to temperature and moisture fluctuations, which often leads to cupping, splitting, and gapping when placed directly over a radiant heat source. Stick to engineered timber for a reliable outcome.
What is the maximum temperature for underfloor heating timber floors?
The surface temperature of the subfloor directly beneath the timber must never exceed 27°C. Exceeding this thermal threshold dries out the wood fibers too quickly, which damages the internal structural adhesive and causes the floorboards to contract excessively.
How long should I wait before turning on a heated floor timber installation?
You should wait at least 48 to 72 hours after installation before turning the heating system on. Once that period has passed, the system must be brought up to temperature gradually increasing it by no more than 1°C to 2°C per day to prevent thermal shock to the wood.
Can you put underfloor heating under wooden floorboards?
Often yes, depending on whether the boards are the finished floor or the subfloor. Use the three-situation answer above.
Is hydronic or electric better under timber?
Neither wins outright; match the system to the area and build-up, and confirm the product is rated for timber.
Is a glue-down installation better than floating?
Reader question from the comments: glue-down gives the best thermal contact and stability; floating needs approval from both manufacturers. Reuse the existing reply.
What thickness of engineered timber is best?
Reuse the existing reply (14-15 mm balance), then add the note on thicker boards above.
Can I put a rug over heated timber?
Thin, breathable rugs are usually fine; thick rugs and furniture that block airflow raise floor temperature.
2 Responses
Excellent article! We’re building a new home with hydronic underfloor heating and want the warmth of real timber without worrying about movement or gaps later on. Is there an ideal thickness for engineered timber flooring to maximise heat transfer, and would you generally recommend a glue-down installation over a floating floor for the best long-term performance?
Thanks for your question, Christopher! Yes, the thickness of the flooring plays an important role. In most cases, high-quality engineered timber around 14–15 mm thick offers an excellent balance between durability, stability, and efficient heat transfer. We also generally recommend a glue-down installation over underfloor heating because it provides better thermal conductivity, improved stability, and a more solid feel underfoot. It’s also important to keep the floor surface temperature within the manufacturer’s recommended limits and increase the heating gradually after installation to protect the timber. We’d be happy to recommend the best engineered timber product and installation method for your specific underfloor heating system.
